SCHÜCO AD UP SERIES
Schüco entrance doors combine numerous, timeless designs with the highest security, thermal insulation, weathertightness, and durability.
The Schüco AD UP (Aluminium Door Universal Platform) system combines functional reliability with modern, high-quality design. The unique construction principle using a 5-chamber profile composition provides stability and all the technical prerequisites for an intelligent door system, whether a stylish front door or a frequently used commercial door. The two core basic depths of 75 and 90 mm allow the system platform to be tailored to individual requirements for energy efficiency and weathertightness.
The AD UP door system achieves outstanding thermal insulation properties up to passive house level. Available in heights of up to 3 meters and widths of up to 1400 mm, the AD UP range can provide the grandest entrances.

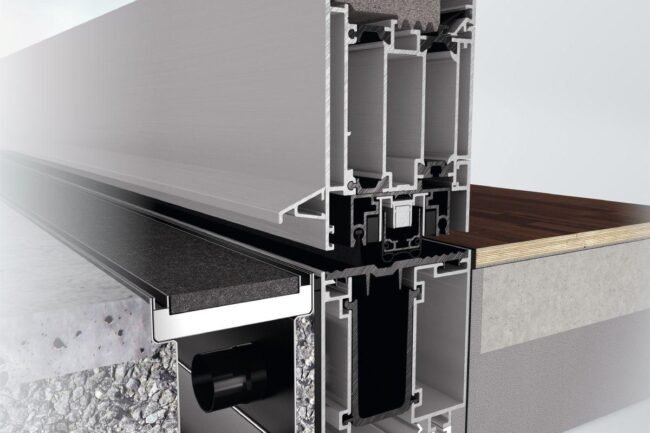

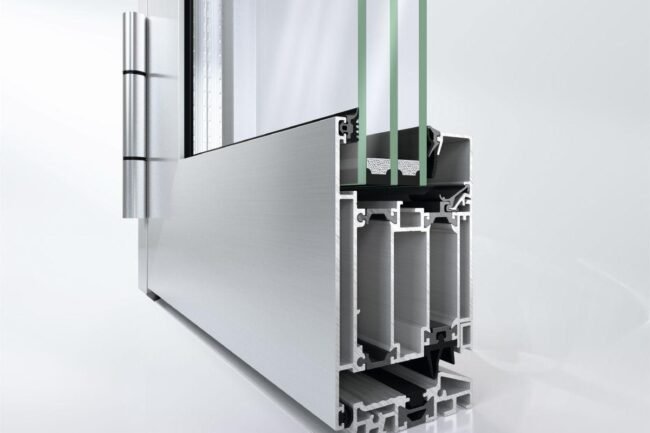

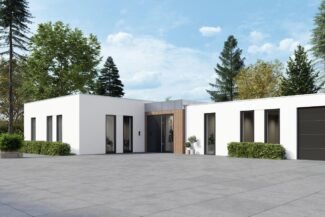

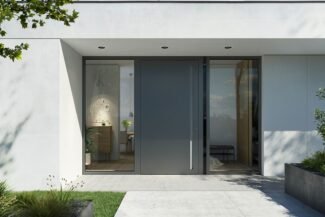

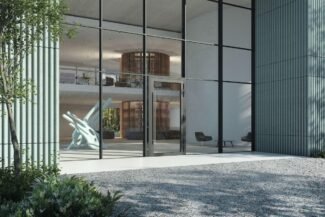

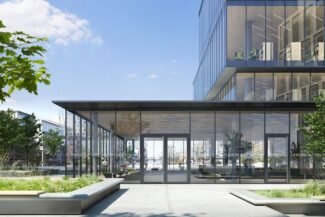

SCHÜCO AD UP 75
- Thick door leaf: 75 mm
- Uf value: (≥)1.6 W/(m²·K)
- Max. height: 3000 mm
- Max. width: 1400 mm
- Glass thickness: 13-53 mm
- Opening type: Side-hung, Inward and outward, Single and double-vent

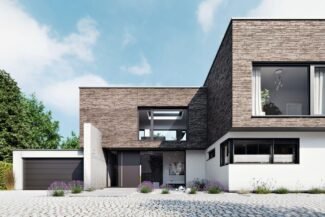

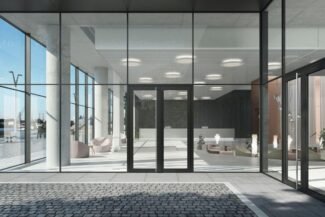

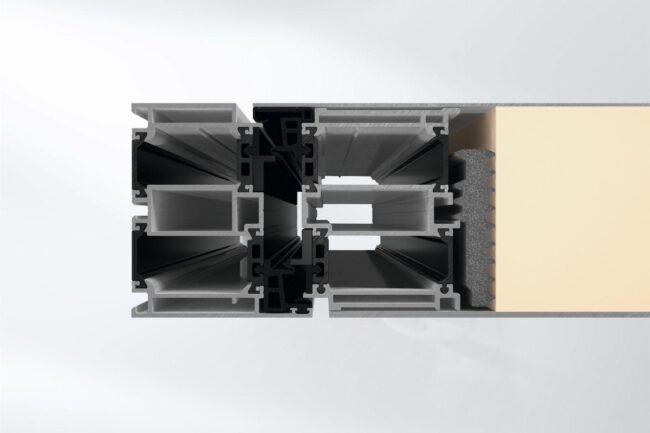

SCHÜCO AD UP 90
- Thick door leaf: 90 mm
- Uf value: (≥)1.3 W/(m²·K)
- Max. height: 2500 mm
- Max. width: 1250 mm
- Glass thickness: 28-68 mm
- Opening type: Side-hung, Inward and outward, Single and double-vent

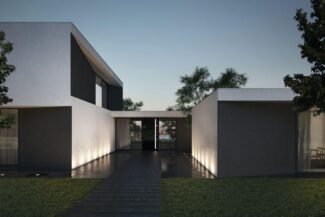

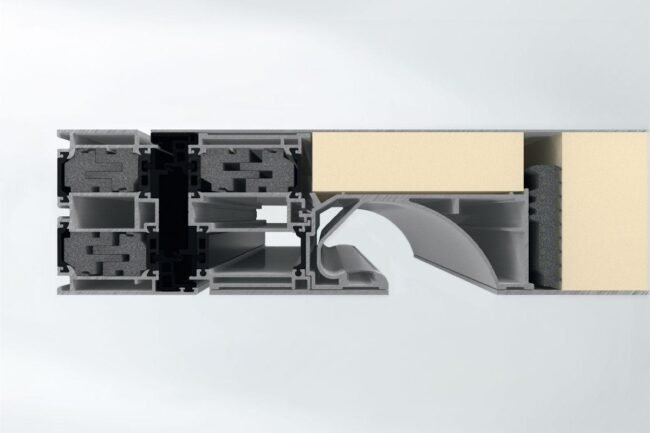

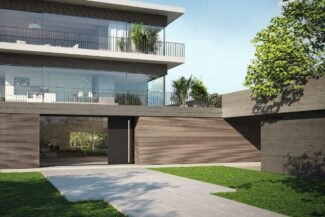

AD UP Design Edition
- Thick door leaf: 90 mm
- Uf value: (≥)1.4 W/(m²·K)
- Max. height: 2500 mm
- Max. width: 1250 mm
- Glass thickness: 90 mm
- Design options integrated in the door infill for all system basic depths offer developers, architects and client additional choices

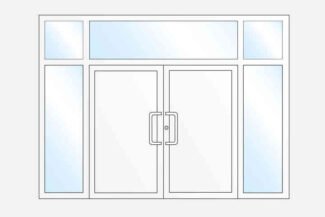

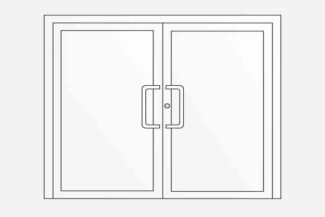

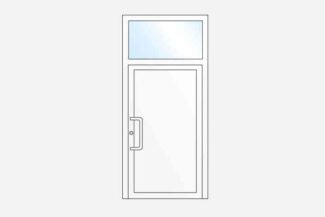

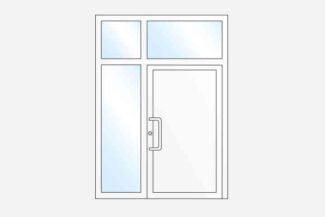

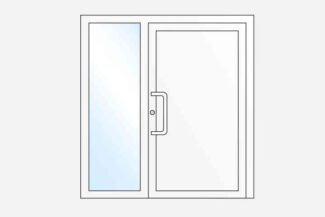

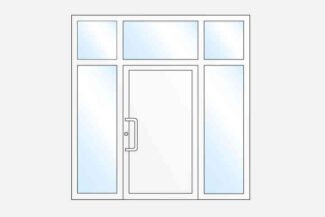

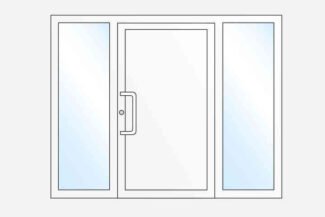

Toplights and sidelights

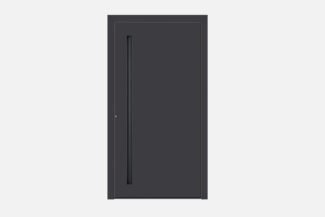

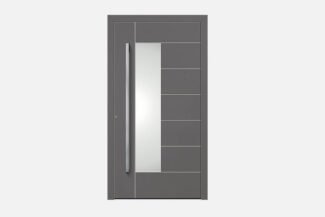

Door infills
